LEAD FLUID

Akıllı Endüstriyel Peristaltik Pompa

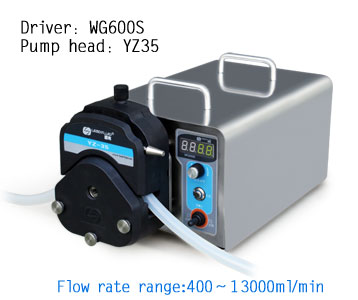

WG600S Industrial Speed

» Product introduction
The pump is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic functions:such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.

» Function and Feature
• Stainless steel housing.

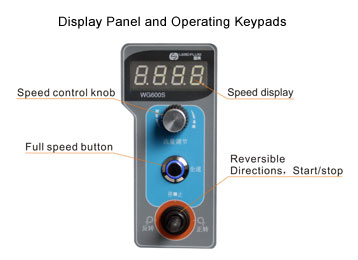

• keypad controls running speed, reversible direction, start/stop, full speed, easy operation.

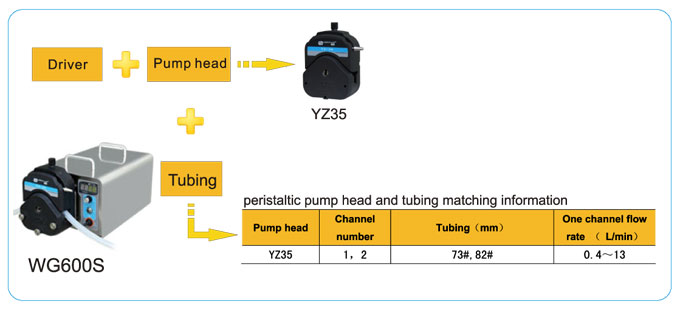

• Applicable pump head: YZ35, 2xYZ35.
• One channel flow range: 0.4-13(L/min).
• Speed resolution: 1rpm.
• Four-figure digital LED indicator displays working speed.
• Brushless motor drive, free maintenance.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid,alkali,sodium and the
organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator, can choose 5V,12V,24V. External analog adjusts the rotate speed, can choose 0-
5V/10V, 4-20mA.
•RS485 interface, MODBUS protocol is available, easy to connect other equipments.

» Technical parameters
• One channel flow range :0.4-13L/min
• Flow accuracy:<3%
• Speed range:30-600rpm.
• Speed resolution: 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard),
• Power consumption:<300W
• External control:Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface:RS485 communication interface,
support the MODBUS protocol.
• Ambient temperature:0 ~ 40?
• Relative humidity:<80%
• IP grade:IP31
• Dimensions(LxWxH)340mmx235mmx175mm
• Weight:13KG
